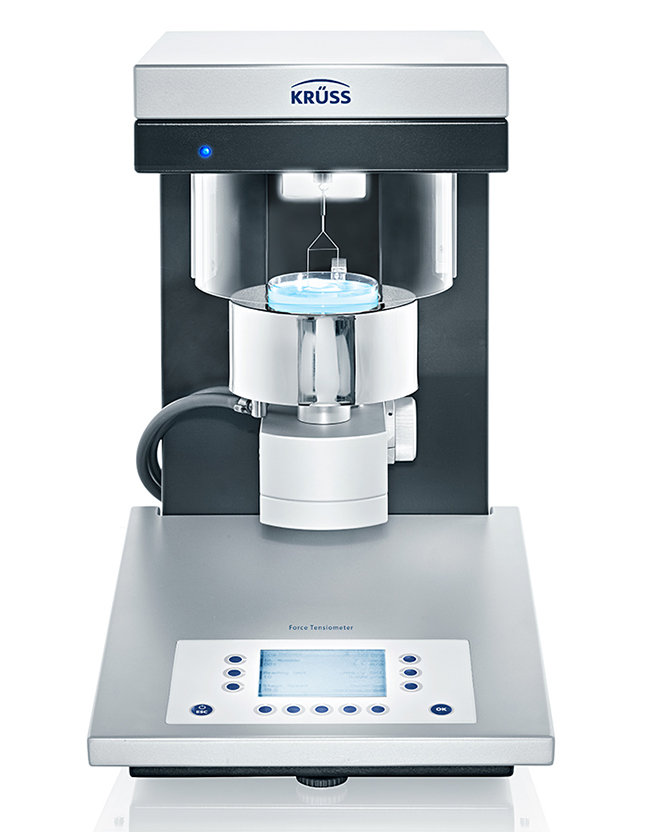

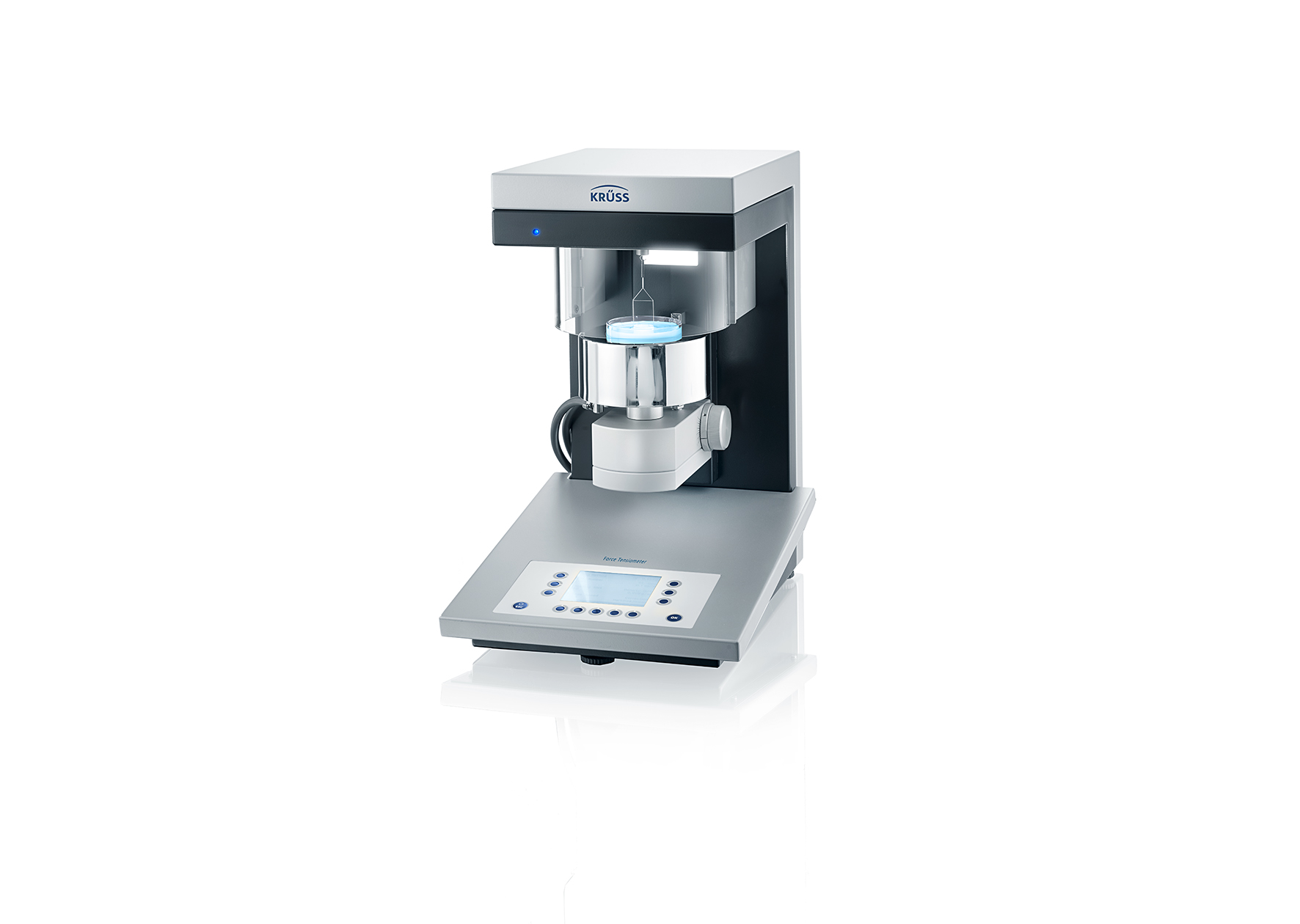

FORCE TENSIOMETER, K20

The versatile semi-automatic tensiometer for quality control

It is the specialist for quality control-everywhere that surfactants are used and for measuring surface and inter facial tension of liquids using the Wilhel my Plate or the Du Noüy Ring method. In addition, it is able to determine the density of liquids.

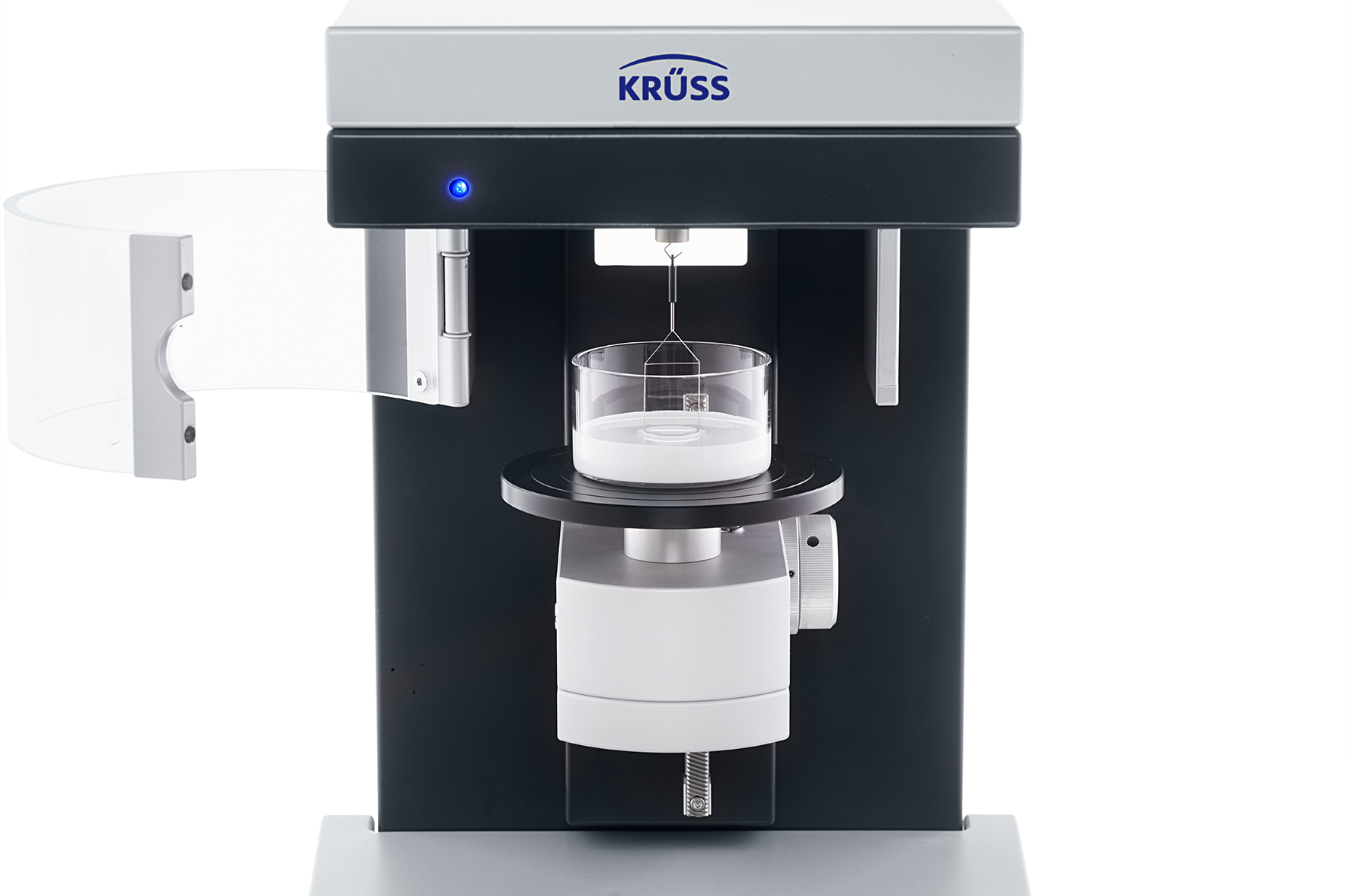

The motorized sample stage can be manually as well it is driven smoothly by an electric motor for quick measurement. It can be powered by rechargeable batteries, so it is suitable for flexible use as a portable stand-alone instrument.

It is available as the manual standard version K20S and the semi-automatic instrument K20.

Additional information
INSTRUMENT DIMENSIONS

Footprint : 270 mm × 350 mm (W × D)
Height : 430 mm
Weight (without accessories) : 11 kg
TEMPERATURE MEASUREMENT

Range of temperature measurement: -20 to 150 °C
Resolution : 0.1 °C
Precision : 0.2 °C
Accuracy : 0.5 °C
ENVIRONMENT

Operating temperature : 15 to 30 °C
Humidity : Without condensation
TEMPERATURE CONTROL

Type of temperature control : liquid
Range of temperature control : -10 to 130 °C
Flow-through thermostat : optional
FORCE MEASUREMENT

Maximum load : 50 g
Resolution : 100 µg
Precision : 100 µg
Measurement rate : 5 Hz
Adjustment : optional:
automated
external weight
WILHELMY PLATE

Results : surface tension (SFT)
interfacial tension (IFT)
Range : 1 to 999 mN/m
Resolution : 0.1 mN/m
DU NOÜY RING

Results : surface tension (SFT)
interfacial tension (IFT)
Range : 1 to 999 mN/m
Resolution : 0.01 mN/m
Correction method : Harkins-Jordan
Zuidema-Waters
linear correction
no correction
LIQUID DENSITY

Liquid density range : 1 to 2200 kg/m³
Resolution : 1 kg/m³
1 kg/m³ : 3 kg/m³
