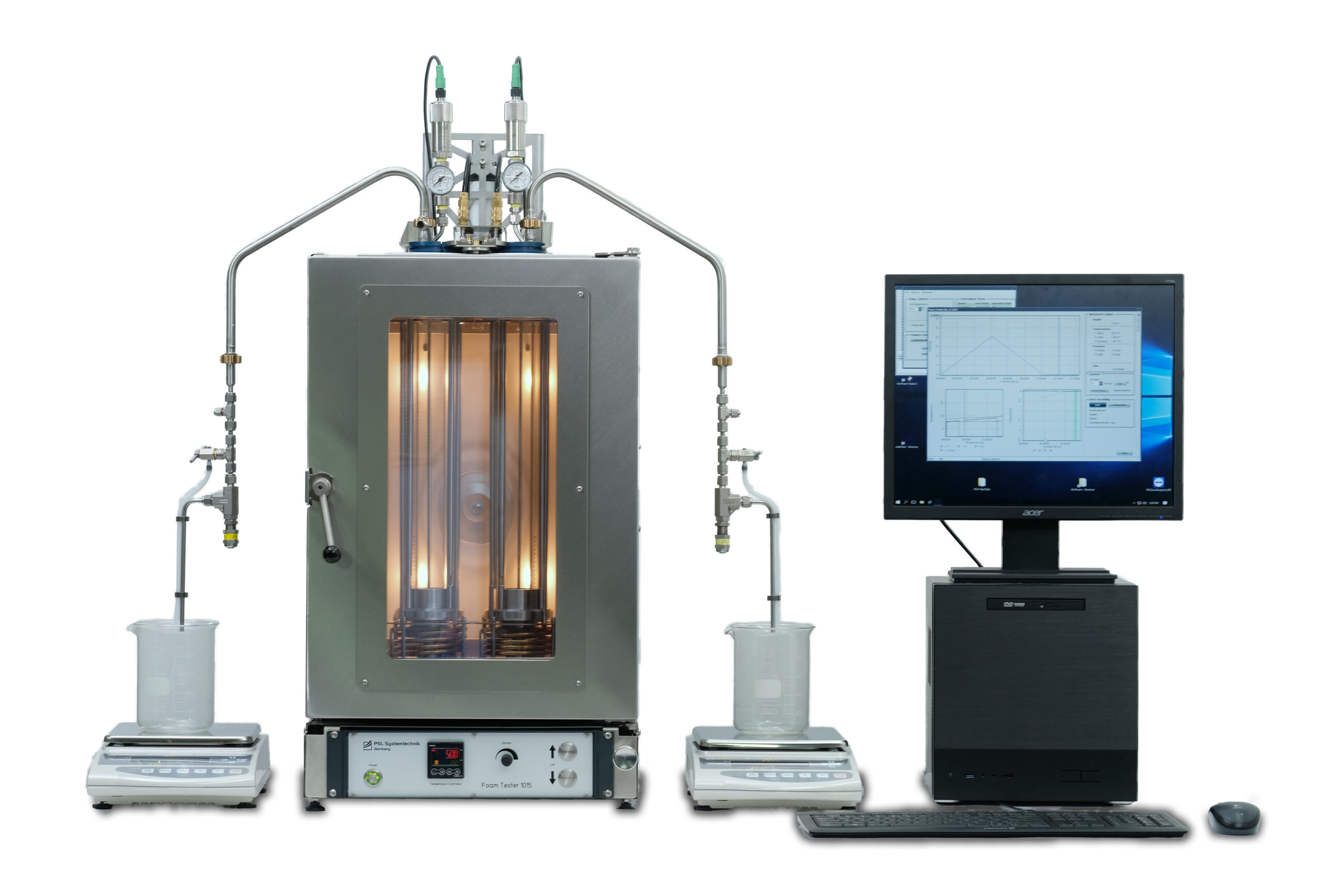

FOAM TESTER FOA

The Foam Tester FOA enables the investigation of foams with regard to foam production, stability and foam decomposition.

Based on the ASTM D892 the Foam Tester FOA extends the measuring possibilities to increased pressure ranges with only insignificant changes in design. Even aqueous liquids can now be tested under pressure for their foaming behaviour at elevated, previously inaccessible temperatures of more than +100 °C.

Additional information
Different options available

e.g. 2. test cell, balance
see: Options
Measurement device

Foam Tester FOA 1015
Application

Examination of foam and foamers at elevated temperature to simulate field conditions.
Test foam stability and defoamer efficiency, carry-over tests
Standard

Based on principles of ASTM D892
Temperature range

+30 .. +150 °C (+86 .. +302 °F)
Pressure range

0 .. 10 bar (145 psi)
All cells can be operated individually
Number of test cells

1 (Basic)
2 (with extension)
Sample volume

~ 50 .. 200 ml
Weight

68 kg (FOA, empty w/o cells)
approx. 100 kg with two test cells
Dimensions (WxDxH)

44 x 54 x 143 cm (FOA w/o balance, PC)
Power supply

230 V~ or 115 V~
Download PDF
Category: Foam Analyzers
