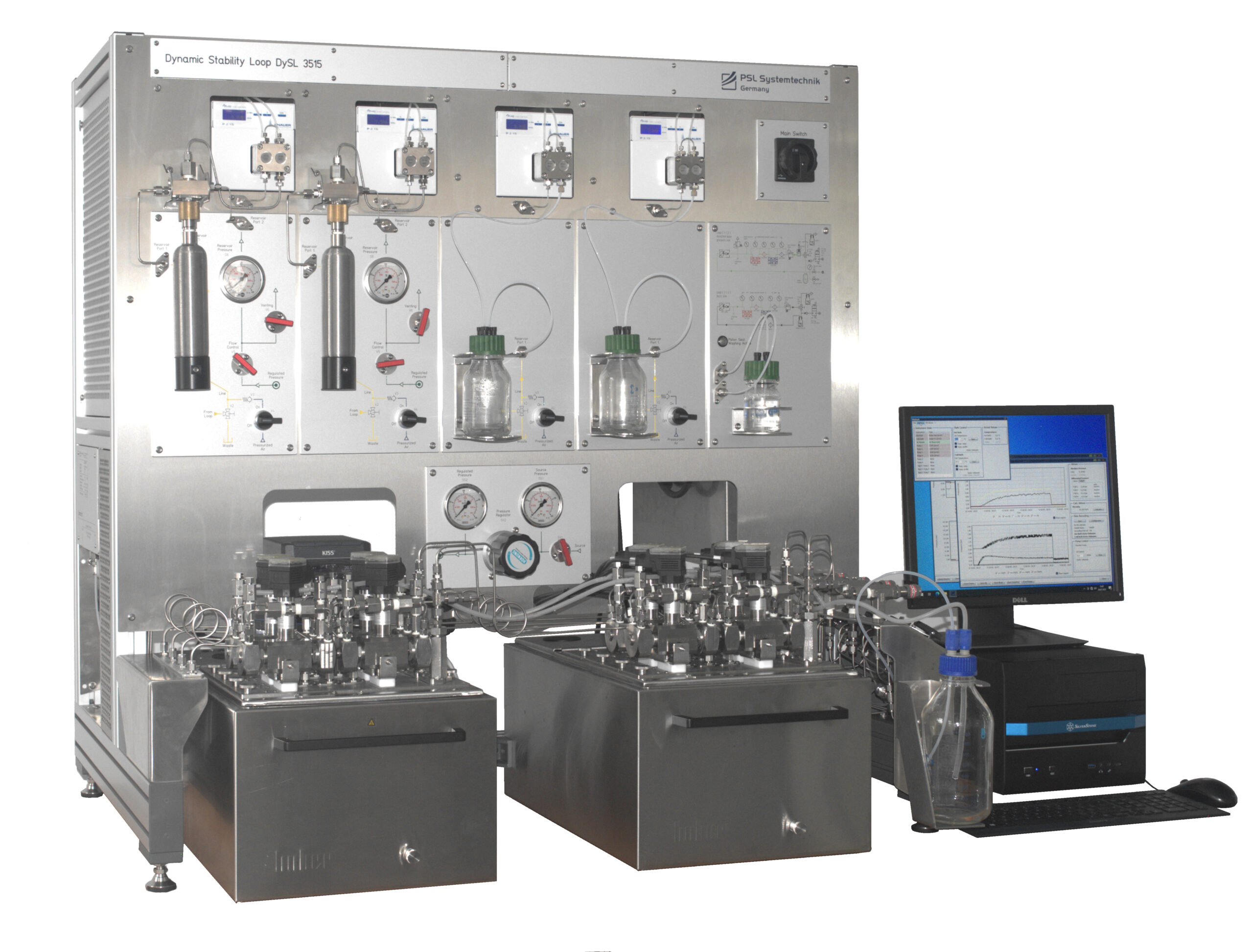

DYNAMIC STABILITY LOOP

The Dynamic Stability Loop (DySL) by PSL Systemtechnik was designed to test long-term stability of umbilical chemicals in the lab at very stringent conditions. The DySL combines up to six loops for measurements of long-term changes of viscosity and tube blocking tendencies at pressurized conditions.

Additional information
Laboratory instrument

Dynamic Stability Loop
Application

Test of long-term stability and stress test of umbillical fluids
Temperature range

Refrigerated bath: -10 … +150 °C
Heated bath: +30 … +150 °C
other temperature ranges on request
Pressure range

Up to 150 bar (2,175 psi)
No. of test loop

Up to 6 loops
Flow rate

Single Pump: 0,1 … 9,99 ml/min
up to 6 Pumps
Voltage input

230 V~ (115 V~ on request)
Weight

ca. 130 kg (DySL with 4 loops)
Dimensions (WxDxH)

100 x 55 x 105 cm
